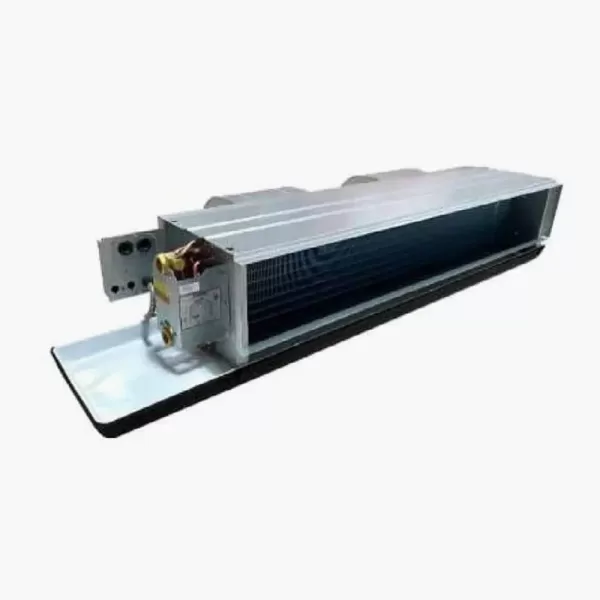

YGFC Series Fan Coil units from Johnson Controls are designed specially to meet the varied requirements of zone cooling or heating using Chilled Water or Hot Water. Fan Coils can be applied to two or four pipe systems to satisfy the requirements of a wide variety of air conditioning or heating application. The YGFC is available in both concealed and exposed versions for ceiling and
floor mounted installation. They offer effective zone control and are especially suitable for use in apartments, hotels, shopping centers, office buildings and hospitals etc.

YGFC fan coil units are available in ten sizes with airflow capacity ranging from 110 to 2700 m3/h. The ceiling concealed unit is suitable for external static pressures of up to 60 Pa. The cooling or heating performance of a fan coil can vary greatly with changes in air inlet temperature and humidity. It also varies with the amount of water being circulated in the coil. The water flow rate through each unit is determined by the specification of the system that governs the difference between the inlet and outlet water temperature.

Salient features:

• Units have 3 fan speeds and operate very silently. Sound Data of the units at all three speeds is available. Whisper quiet comfort condition results in satisfied occupants.
• Ten different sizes with 3 and 4 row coils to closely match load requirements and provide dehumidification.
• Height of ceiling unit is restricted to 233 mm for concealed unit and 262 mm for exposed unit.
• Four different configurations allow designers to provide cooling in all areas with minimum duct work.
• Reduces installation and commissioning time and cost.
• Filters on the Concealed Units can be removed from any direction. Exposed units have filters that slide out.
• Motors are internally protected with UL recognized components.
• CE marked unit available as an option
